[보고서]극한규모 슈퍼컴퓨팅 기반 과학·공학 분야 거대문제 해결·지원

염민선

[국가R&D연구보고서] 극한규모 슈퍼컴퓨팅 기반 과학·공학 분야 거대문제 해결·지원
Solving grand-challenge problems in science and engineering by using extreme scaling of supercomputing 원문보기

보고서 정보
주관연구기관	한국과학기술정보연구원 Korea Institute of Science and Technology Information
연구책임자	염민선
참여연구자	강궁원 , 강지훈 , 권오경 , 김지민 , 김한슬 , 류훈 , 문명환 , 박기홍 , 박정우 , 안설아 , 안영선 , 여인성 , 윤태호 , 이홍석 , 정민중 , 정영균 , 정희진 , 조기현 , 조덕연 , 조지호 , 최성환 , 한혜림 , 현영환 , Bui Khac Hoai Nam , 고영일 , 최해천
보고서유형	3단계보고서
발행국가	대한민국
언어	한국어
발행년월	2020-12
과제시작연도	2020
주관부처	과학기술정보통신부 Ministry of Science and ICT
연구관리전문기관	한국과학기술정보연구원 Korea Institute of Science and Technology Information
등록번호	TRKO202100005926
과제고유번호	1711121658
사업명	한국과학기술정보연구원연구운영비지원(R&D)(주요사업비)
DB 구축일자	2021-07-03
키워드	거대문제.슈퍼컴퓨팅.병렬처리.계산과학공학.매니코어 연산.Grand-challenge Problems.Supercomputing.Parallel Processing.Computational Science and Engineering.Manycore Computing.

초록 ▼

ㅇ 대규모 병렬처리 기반 초고성능컴퓨팅 기술 확보
- 12PF 대규모 양자수송 현상 해석을 위한 병렬처리 기술 개발
- 7.5PF FSI 해석을 위한 2기술 개발
- 슈퍼컴퓨터 5호기 누리온 버스트버퍼 성능사례 확보

ㅇ 초고성능컴퓨팅 기술 기반 과학·공학 초거대규모 문제 해결
- 12.5PF 대규모·고정밀 거대 계산 실현 및 열유동해석 문제 발굴
- 7.5PF 페로브스카이트 소재 기반의 LED 설계 연구
- 7.5PF 근우주의 은하 생성 및 진화 연구

ㅇ 과학·공학 분야 난제

Abstract ▼

IV. Results of the study
□ Securing ultra-high performance computing technology based on large-scale parallel processing
- Development of parallel processing technology for analyzing 12PF large-scale quantum transport phenomena
- Development of 2 technologies for analyzing 7.5PF FSI
- Acquisition of performance improvement example for the burst buffer of the Nurion supercomputer

□ Solving ultra grand-challenge problems in science and engineering based on ultra-high performance computing technology
- Realization of 12.5PF large scale calculation with high precision and descovery of heat flow analysis problem
- Research on LED design based on perovskite material
- Research on Galactic Generation and Evolution of 7.5PF Near Space

□ Discovering, solving and supporting group research for solving outstanding issue in science and engineering
- Research on enhancing light-emission rate of organic Perovskite
- Research on designing quantum logic gate device in silicon

(출처 : SUMMARY 7p)

목차 Contents

표지 ... 1
제 출 문 ... 2
보고서 초록 ... 3
요 약 문 ... 4
Summary ... 6
Contents ... 9
목차 ... 10
표목차 ... 11
그림목차 ... 12
제 1 장 연구개발 과제의 개요 ... 17
제 1 절 연구목적 및 필요성 ... 17
제 2 절 연구내용 및 범위 ... 19
제 3 절 추진전략 ... 33
제 2 장 국내외 기술개발 현황 분석 ... 35
제 1 절 국내 동향 ... 35
제 2 절 해외 동향 ... 38
제 3 장 연구개발 수행 내용 및 결과 ... 43
제 1 절 대규모 병렬처리 기반 초고성능컴퓨팅 기술 확보 ... 43
제 2 절 초고성능컴퓨팅 기술 기반 과학ž공학 초거대규모 문제 해결 ... 81
제 3 절 과학·공학 분야 난제 해결을 위한 집단 연구 문제 발굴 및 수행·지원 ... 88
제 4 절 지적 재산권 현황 ... 108
제 4 장 목표달성도 및 관련분야에의 기여 ... 118
제 1 절 목표달성도 ... 118
제 2 절 관련 분야에의 기여도 ... 120
제 5 장 연구개발결과의 활용계획 ... 122
제 6 장 참고문헌 ... 123
끝페이지 ... 126

표/그림 (90)

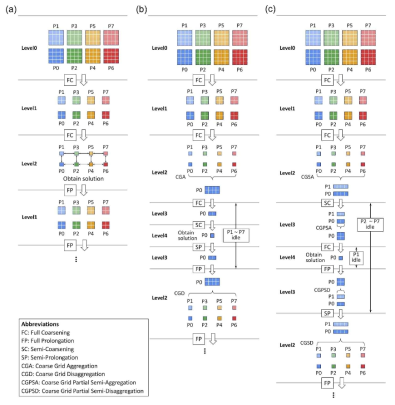

표 Comparison of parallel multigrid methods with different coarse-level processing. (a) Coarse-grid solver (b) Coarse-grid aggregation Coarse-grid partial semi-aggregation

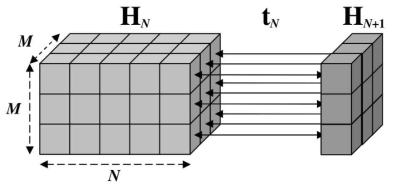

표 Scheme of the Recursive Green’s Function method for a 3D system. The new Green’s function G(N+1) can be calculated from the old Hamiltonian HN (light grey), the new slice Hamiltonian HN+1 (dark grey) and the coupling tN (solid arrows)

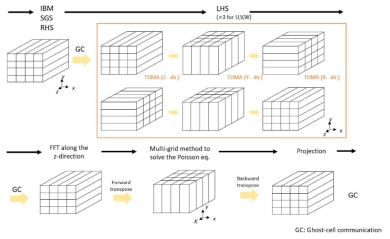

표 Schematic of 2D domain decomposition of FSI solver

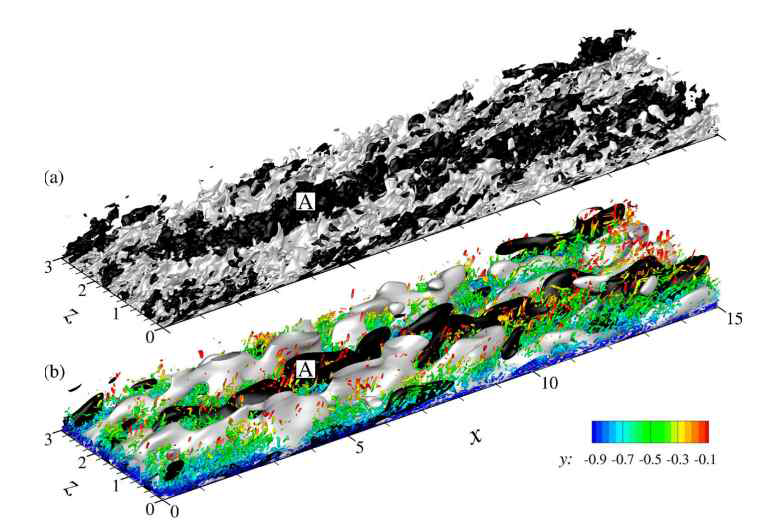

표 (a) Isosurfaces of the streamwise velocity fluctuations in the channel flow simulation code (b) Isosurfaces of the filtered streamwise velocity fluctuation

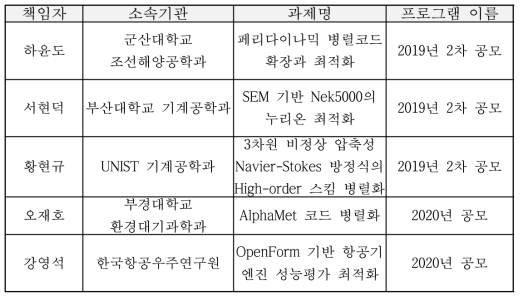

표 List of 2020 calls for collaboration of performance optimization

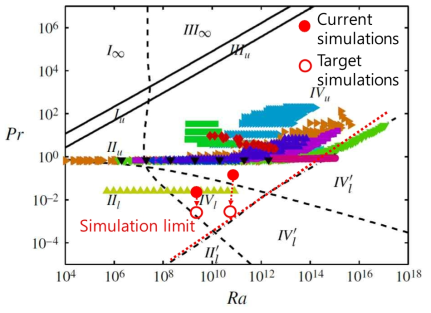

표 Recent simulation status and target of this simulation
표 1940 Tacoma Narrows Bridge collapses
표 Large-scale simulation for electric device design
표 Visualization of real-time sensing data for machine learning system

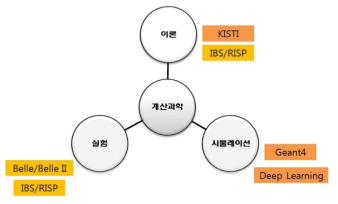

표 Convergence research on high energy physics using experiment-theory-simulation

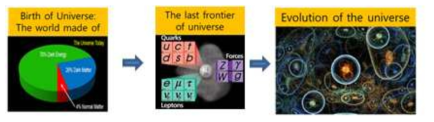

표 The chart of evolving universe

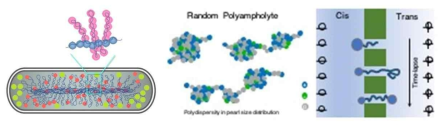

표 Bacterial chromosome and polyampholytes
표 Relationships among superconductivity, physical property, and new materials/devices from high-Tc superconductors
표 Phase Diagram of High-Tc Cuprates

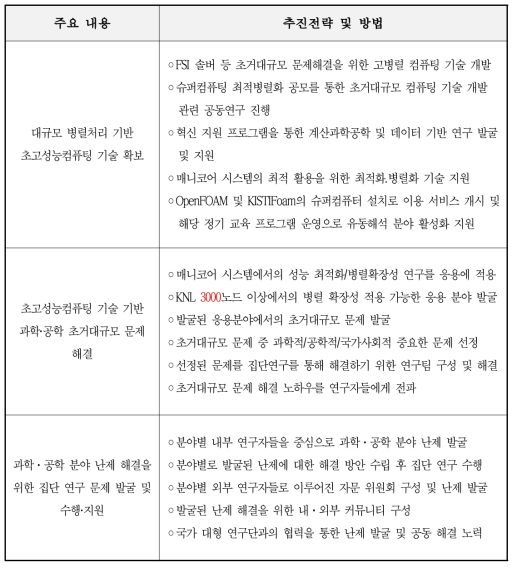

표 Research Strategies and Methods
표 Relationship between sub-projects (R&D program

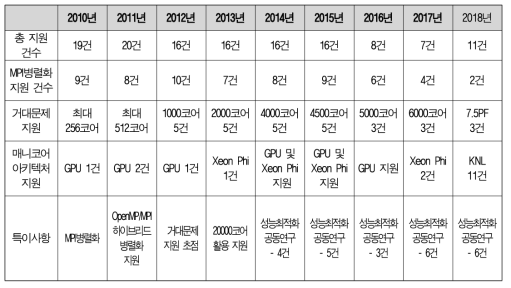

표 Annual status of performance optimization and parallelization
표 Best papers by parallel optimization technical support

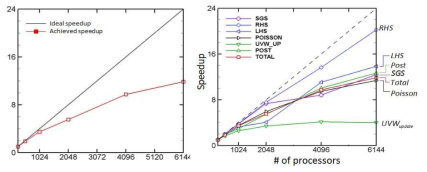

표 parallel performance test of turbulence simulation by using maximum 6,144cores
표 Major scientific areas supported by NERSC program

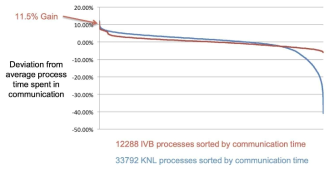

표 Load balancing efficiency of E3SM meteorological model: load balancing is maintained when an application is executed with up to 33792 KNL processors

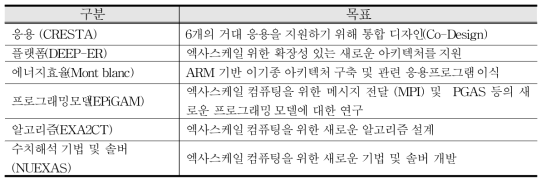

표 Subprojects funded by FET-HPC in Europe

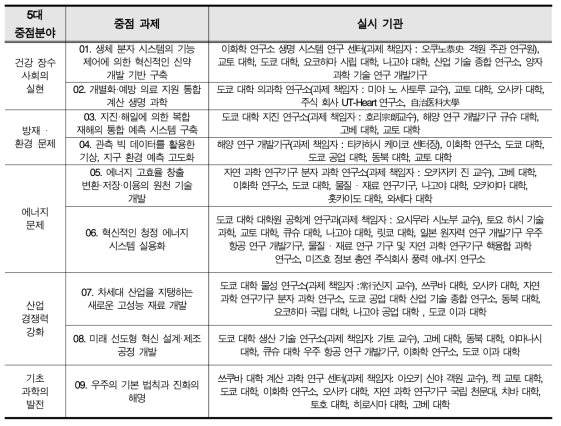

표 list of 5 major areas, 9 major tasks of computational science research in Japan and their implementation institutions

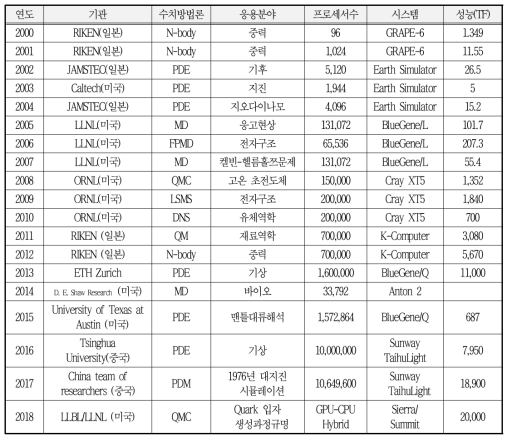

표 . Gordon Bell Award List

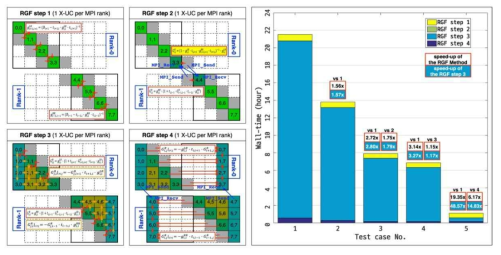

표 (Left) Computing steps of Recursive Green’s Function algorithm (Right) Performance gain driven by each optimization technique

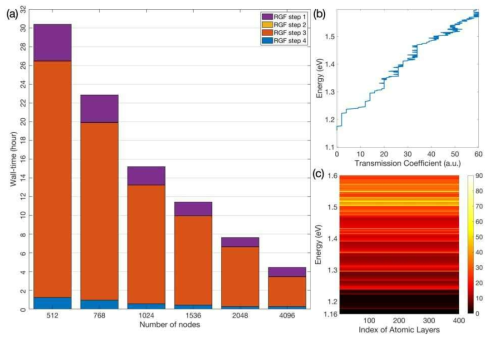

표 (a) Strong scalability of the quantum transport simulation that is conducted for a Silicon nanowire consisting of 102,400 atoms. (b) Transmission coefficient and (c) local density states that are given as a function of conduction band energy

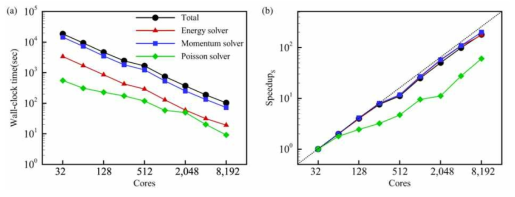

표 Scalability of turbulent flow solver (VDMPM-STD) (a) execution time (b) speedup

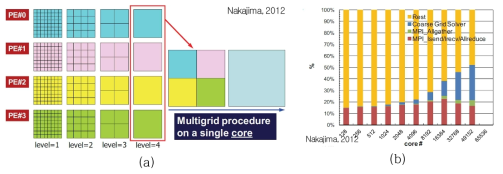

표 Coarse-grid aggregation (CGA) method (a) Grid aggregation process (b) Relative performance profiling

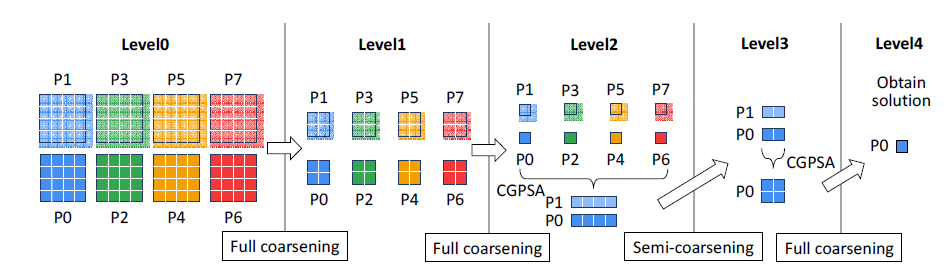

표 CGPSA process. Grid aggregations are conducted at Level2 and Level3

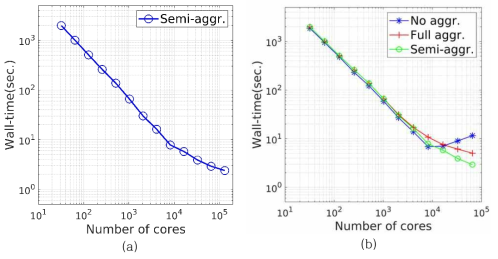

표 Parallel performance of CGPSA (a) Scalability until 6.3PFlops (131k core) (b) Comparison with other MG methods

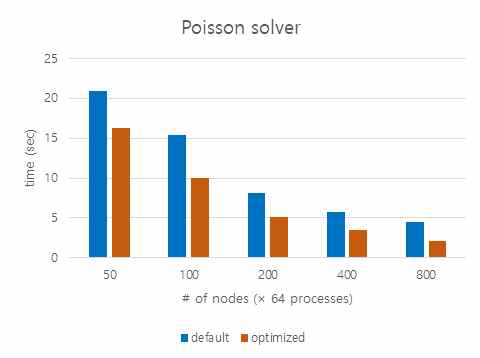

표 Scalability: Strong scale of optimized FSI poisson solver

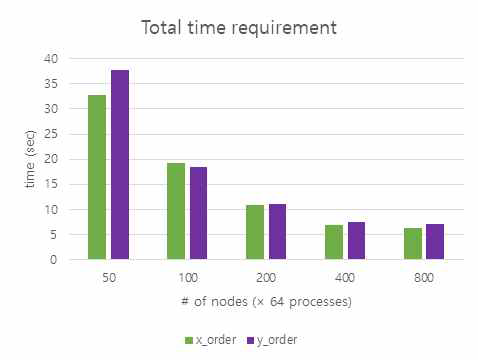

표 Performance comparison of resource allocation sequence

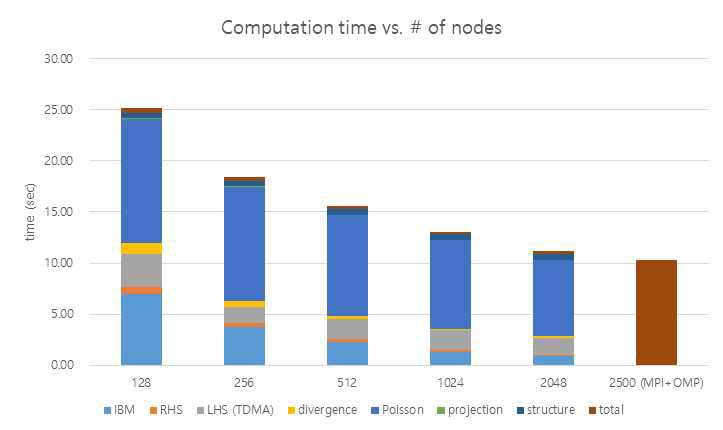

표 Scalability: Strong scale of FSI solver up to 2500 nodes (160,000 cores)

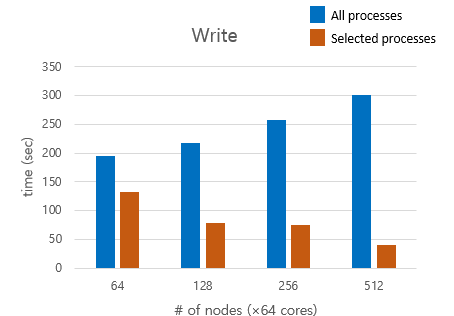

표 Write performance comparison of with an without hybrid I/O method

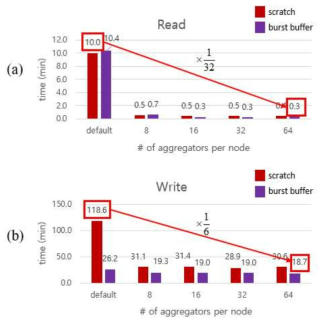

표 I/O performance comparison of global file and burst buffer system: (a) read, (b) write

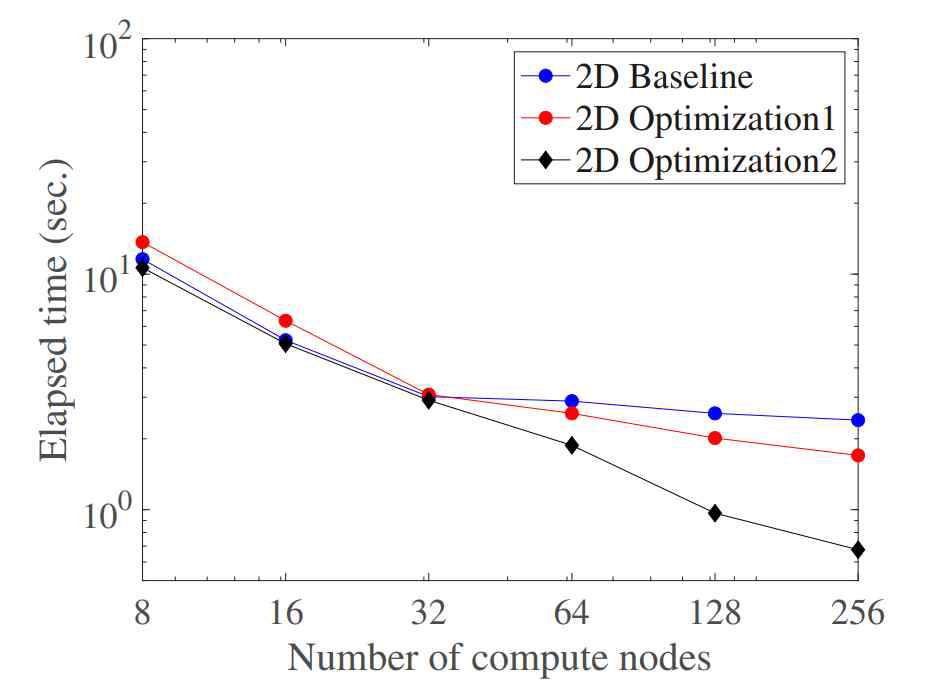

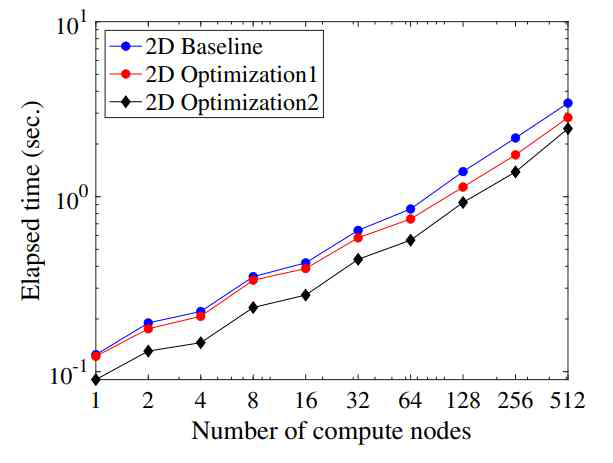

표 Scalability: Strong scale of optimized channel code up to 256 nodes(16,384 cores)
표 Scalability: Weak scale of optimized channel code up to 512 nodes(32,768 cores)

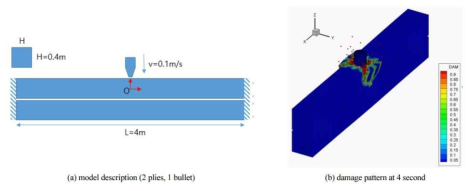

표 Peridynamics model 1
표 Performance comparision of peridynamics code – model 1 (4,000 iterations)
표 Performance comparision of peridynamics code – model 2 (300 iterations)
표 Performance result of Nek500 code
표 Schematic of halo-cell of 2D domain (Selvan et al, AIAA SciTech, 2015)
표 Performance result of 3D N-S code (a) Performance speedup (b) Communication cost

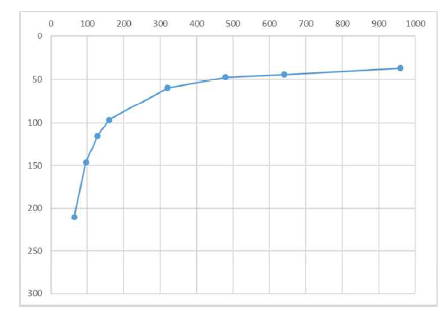

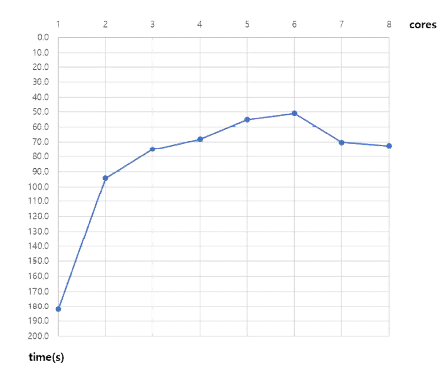

표 Performance result of AlphaMet code at Jeju area(X-axis:cores, Y-axis: elapsed time)
표 Performance of AlphaMet code at Busan area(X-axis:cores, Y-axis: elapsed time)

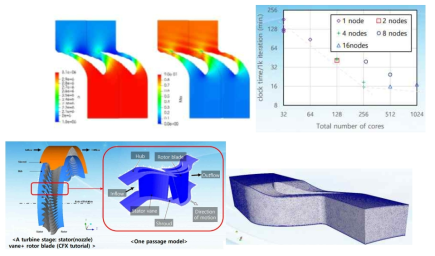

표 Fluid analysis of turbine nozzle using OpenFOAM

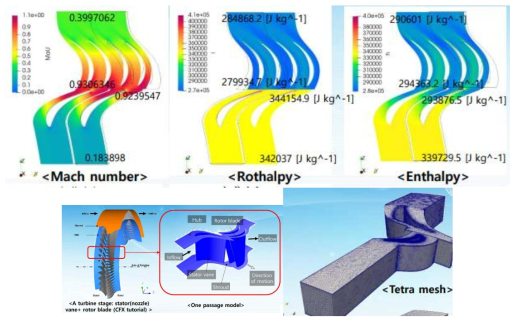

표 Fluid analysis of first stage(stator+rotor) of turbine using OpenFOAM
표 FSI multiphysics analysis of bar(OpenFOAM application)
표 Nurion system test of LES turbulent fluid analysis for the simple model(OpenFOAM application)

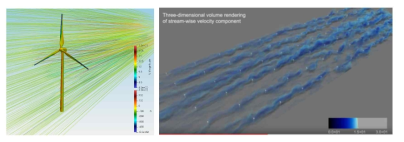

표 Exascale analysis application using OpenFOAM about wind power generator and wind farm

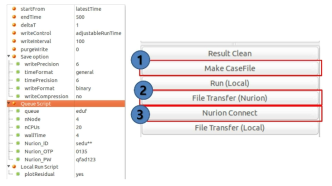

표 Nurion linkage improvement of KISTIFoam

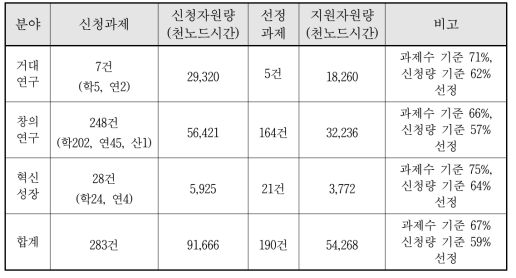

표 Summary of supercomputer resource share

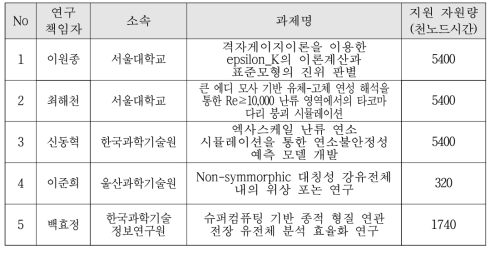

표 1st / 2nd / 3rd list of support tasks of Innovation Support Program(giant research)

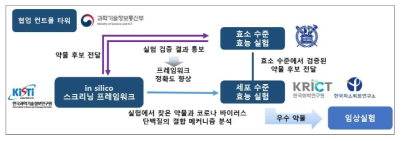

표 Systematic cooperation among industry, academia, institute, and government for finding COVID-19 drug candidate
표 News article from HPC Wire

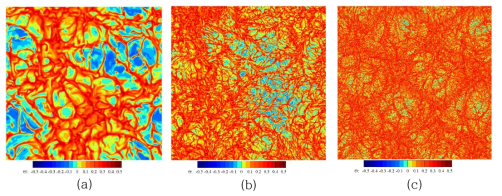

표 Plum structure variation depending on Ra (a) Ra=107 (b) Ra=5x108 (c) Ra=2x1010

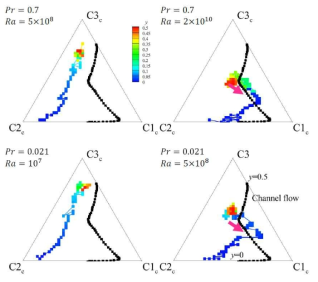

표 Barycentric map of velocity gradient from maximul JPDF location: RBC(color) and turbulent (black)

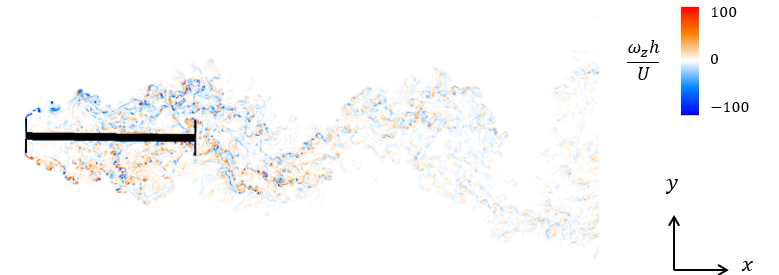

표 Cross section of bridge deck and Flow vorticity at Re=10,000

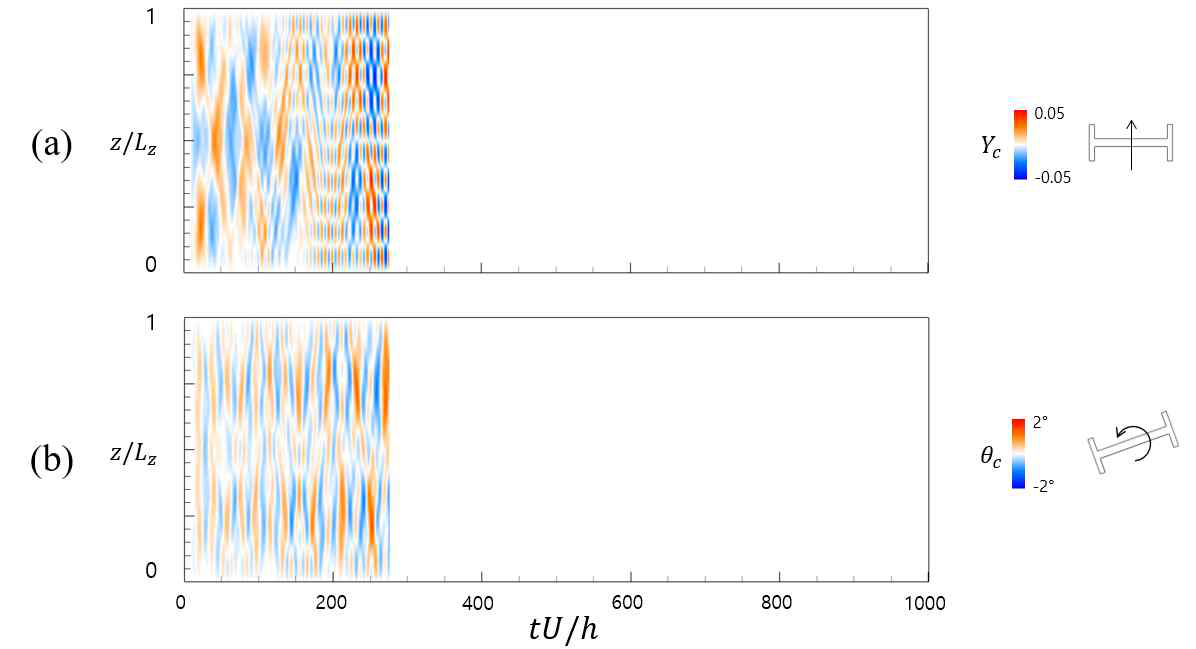

표 Field vaule over time at Re=10,000 (a)Vertical vibration and (b)Twist angle
표 Reproduction of distortion through simulation of the collapse of the Tacoma bridge in Nurion supercomputer

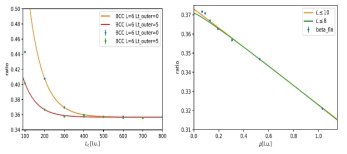

표 Calculation of Bertch parameters using NLEFT

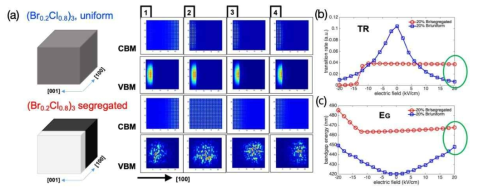

표 (a) Stark-shift in uniformly mixed and segregated (induced by phase separation) 10nm-scale MAPbBrCl quantum dot structures. (b) Inter-band light transition rate and (c) characteristic wavelength that are simulated under external fields

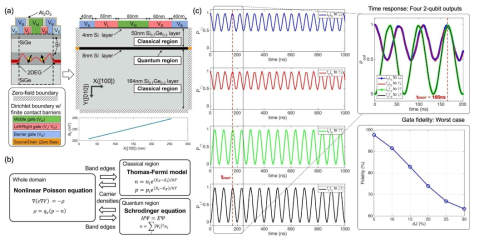

표 (a) Device structure and simulation domain (b) Multi-scale modeling method that employs the Thomas-Fermi calculation and effective-mass electronic structure calculations to describe “Classical” and “Quantum” region, respectively. (c) 2-qubit time responses of the DQD system that show a timing point where CNOT operation is completed, and the corresponding fidelity plotted as a function of inaccuracy in the exchange interaction energy (J)
표 Visualization of multi-dimensional sensor data based on ML

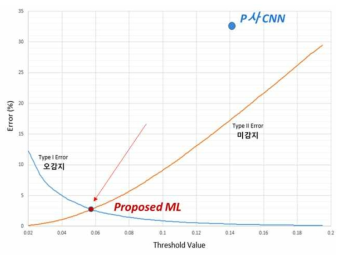

표 Performance evaluation of the proposed machine learning to recognize gunshot sound

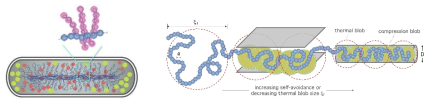

표 Bacterial chromosome and self-avoidance

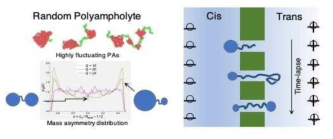

표 Polyampholyte and its translocation

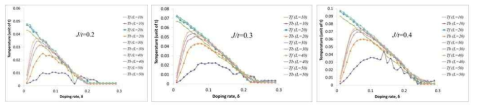

표 The predicted U(1) phase diagrams for 5 different lattice sizes, i.e., 10ⅹ10, 20ⅹ20, 30ⅹ30, 40ⅹ40, 50ⅹ50 lattice with the Heisenberg coupling constant, J/t = 0.2, 0.3, 0.4

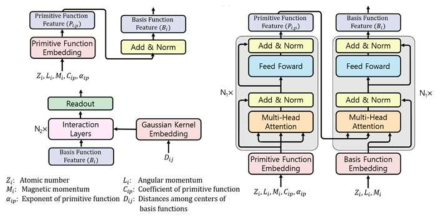

표 A conceptual diagram of an artificial intelligence module that predicts the density matrix proposed in the study

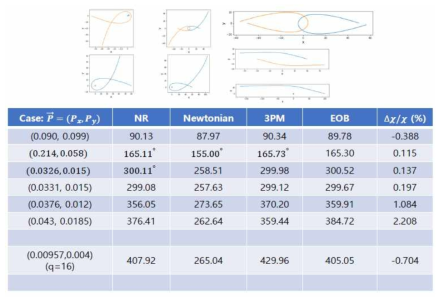

표 Scattering angles of black hole encounters for various impact parameters obtained by numerical relativity simulations (NR) and three approximation methods, e.g., Newtonian gravity (Newtonian), 3rd order post-Minkowskian (3PM), and effective one-body Hamiltonian (EOB), respectively
표 The purpose of high energy physics

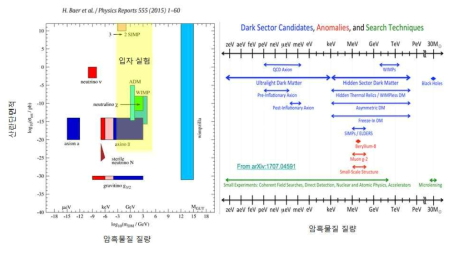

표 Masses and cross-sections of dark matter depending on theory

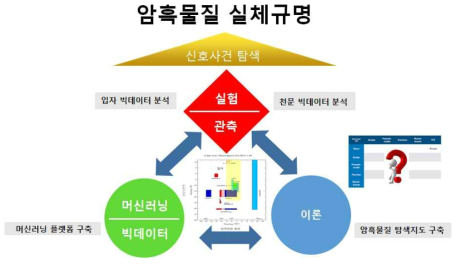

표 The scheme of dark matter search based on machine learning and big data with theory

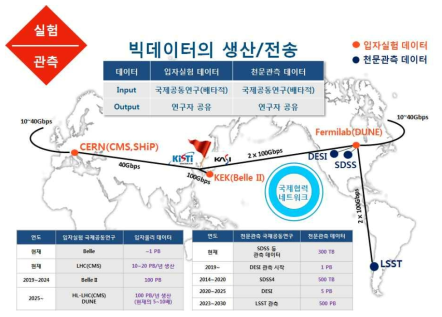

표 The production and transfer of big data from particle experiments and astronomical observatory
표 Results of 7 layer deep learning using 4096 node of KIST-5 supercomputer
표 Big data analysis using KISTI-5 supercomputer with deep learning

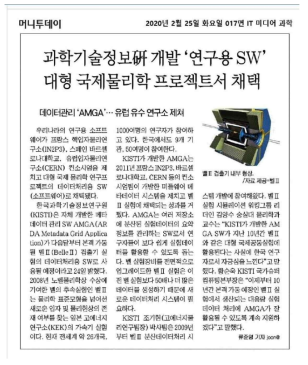

표 Newspaper reports on Belle II Data Handling (2020.02.25)

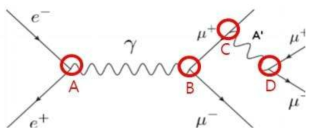

표 The Feynman diagram of signal event

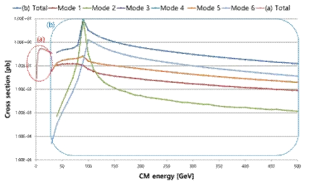

표 Cross-section depending on center of mass energy

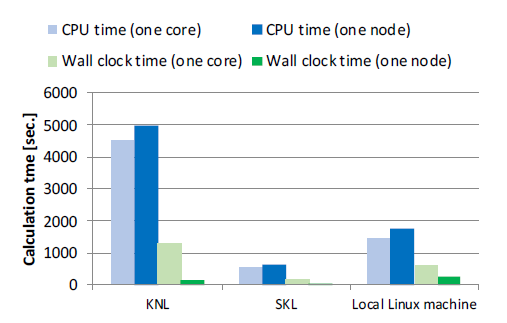

표 CPU time and wall clock time depending on one or more cores

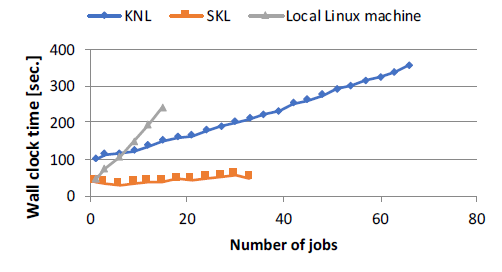

표 Wall clock time of machines depending on the number of jobs

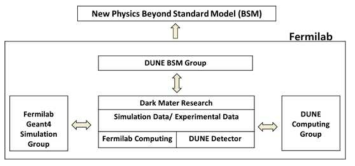

표 The role of the KISTI at the DUNE

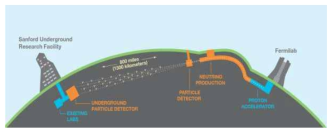

표 The location of DUNE experiment at Fermilab
표 The far detector and near detector at the DUNE
표 The result of production cross-section of neutron rich No isotopes (I)
표 The result of production cross-section of neutron rich No isotopes (II)

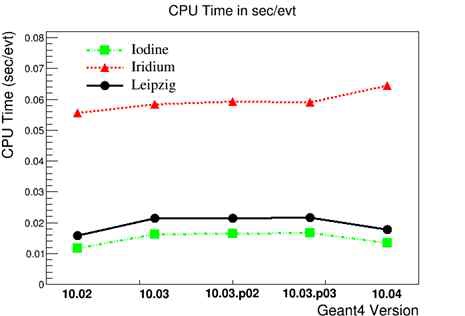

표 The comparisons of CPU time at Nurion KNL system depending Geant4 on versions

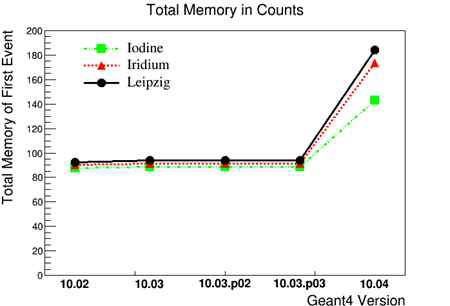

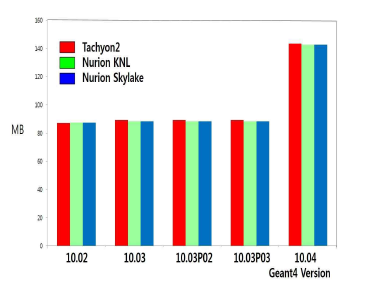

표 The comparison of memory of first events at Nurion KNL system depending on Geant4 versions
표 The comparison of CPU time of KISTI-4 and KISTI-5 supercomputers
표 The comparison of memory of KISTI-4 and KISTI-5 supercomputers
